Miraco Water Troughs

Features
  • Flat back design fits flush with wall
  • No wrenches required for valve compartment access
  • Rubber gasket for air-tight dome seal
  • Optional gravity fill assembly available
  • Stainless steel anchor bolts included
  • Optional 250 or 500 watt Miraco heaters available

Easy access valve for water level adjustment and maintenance


Available with optional 250 or 500 Watt Miraco Heater Kit. Available in 110 or 220 volt

6000 - 60 Gallon Capacity
6100 - 60 Gallon Capacity



6000
Capacity 100 head dairy, 250 head beef
Gallons 60 (227 liters)
Length 90" (229 cm)
Width 33" (84 cm)
Drinking Height 24" (61 cm)
Weight 215 lbs (98 kg)
Heat (Optional 500 Watt) 110 or 220 volt
6100
Capacity 110 head dairy
Gallons 60 (227 liters)
Length 80" (203 cm)
Width 36" (91 cm)
Drinking Height 24" (61 cm)
Weight 205 lbs (93 kg)
Heat 110 or 220 volt
6300 - 110 Gallon Capacity
6300
Capacity 150 head dairy, 300 head beef
Gallons 110 (416 liters)
Length 144" (365 cm)
Width 22" (55 cm)
Drinking Height 22" (55 cm)
Weight 275 lbs (124 kg)
Heat 110 or 220 volt
6400 - 90 Gallon Capacity
6400
Capacity 125 head dairy, 250 head beef
Gallons 90 (340 liters)
Length 120" (304 cm)
Width 22" (55 cm)
Drinking Height 22" (55 cm)
Weight 230 lbs (104 kg)
Heat 110 or 220 volt
6200 - 60 Gallon Capacity
6200
Capacity 110 head dairy, 200 head beef
Gallons 60 (227 liters)
Length 84" (213 cm)
Width 22" (55 cm)
Drinking Height 22" (55 cm)
Weight 205 lbs (93 kg)
Heat 110 or 220 volt
6500 - 130 Gallon Capacity
6500
Capacity 175 head dairy
Gallons 130 (492 liters)
Length 168" (427 cm)
Width 22" (55 cm)
Drinking Height 22" (55 cm)
Weight 281 lbs (127 kg)
Heat 500 watt heater (optional) 110 or 220 volt
6000 - 60 Gallon Capacity
6000
Capacity 100 head dairy, 250 head beef
Gallons 60 (227 liters)
Length 90" (229 cm)
Width 33" (84 cm)
Drinking Height 24" (61 cm)
Weight 215 lbs (97 kg)
Heat 500 watt heater (optional) 110 or 220 volt
2700 - 6 Gallon Capacity
2700
Capacity 100 head dairy/goats
Gallons 6 (22.7 liters)
Dimensions 28.75" x 17.5" (73x44.5 cm)
Drinking Height 14" (35.5 cm)
Valve Miraco Automatic
Weight 40 lbs (18.15 kg)
Heat 250 watt submersible heater (optional) 110 volt
3000 - 5 Gallon Capacity
3000
Capacity 15 head dairy, 30 head beef
Gallons 5 (19 liters)
Dimensions 24 x 22 x 21" (61x56x53)
Drinking Height 16" (55.8 cm)
Valve Miraco Automatic
Weight 48 lbs (22 kg)
Heat 250 watt heater (optional) 110 volt
3200 - 25 Gallon Capacity
3200
Capacity 75 head dairy, 150 head beef
Gallons 25 (95 liters)
Dimensions 48 x 24 x 29" (122x61x74 cm)
Drinking Height 24" (61 cm)
Valve Miraco Automatic
Weight 98 lbs (45 kg)
Heat 250 watt heater (optional) 110 volt
2900 - 6 Gallon Capacity
2900
Capacity 60 head beef or horses
Gallons 6 (23 liters)
Dimensions 30.5" x 16.5" x 27" (77.5 x 40.6 x 69 cm)
Drinking Height 19" (48 cm)
Valve Miraco Automatic
Weight 48 lbs (18.15 kg)
3100 - 8 Gallon Capacity
3100
Capacity 50 head dairy, 100 head beef
Gallons 8 (30 liters)
Dimensions 36 x 22 x 27" (91 x 56 x 69 cm)
Drinking Height 22" (55.8 cm)
Valve Miraco Automatic
Weight 75 lbs (34 kg)

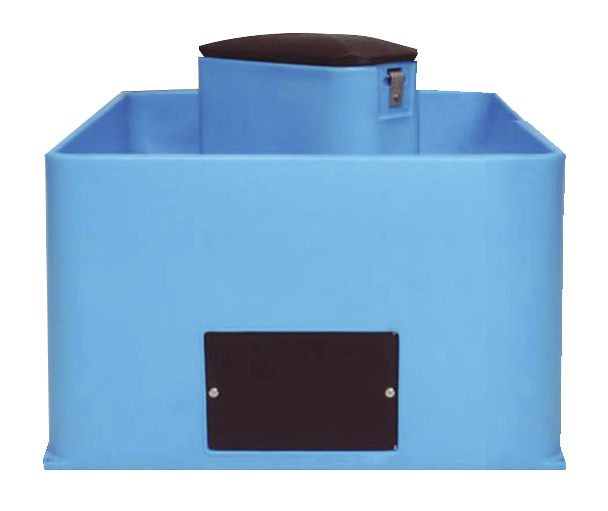

3500 - 8 Gallon Capacity
3500
Capacity 110 head dairy, 225 head beef
Gallons 40 (152 liters)
Dimensions 42 x 42 x 26" (107x107x66 cm)
Drinking Height 26" (66 cm)
Valve Miraco Automatic
Weight 145 lbs (65 kg)
Replacement Parts for Grey and Black Miraco Valves

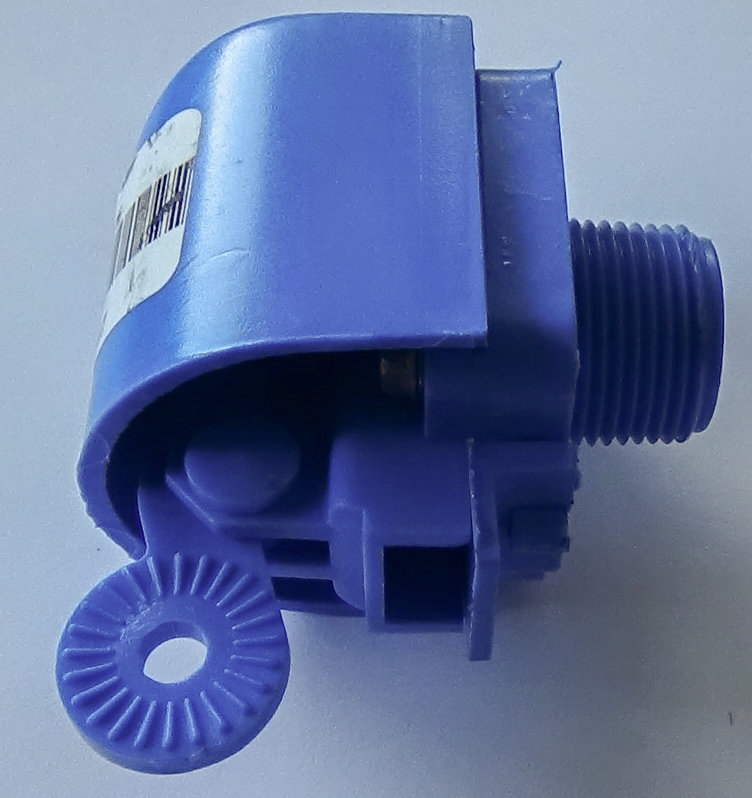

#521-Grey - Complete Valve

25.43


New Grey Miraco Valve Complete. Replaces High and Low Pressure blue valves.


#681 - Valve Lock Pin

1.31



#677 - Valve Plunger
Works with Grey or Black

2.76



#680 - Valve Plunger Seat

0.56




#678 - Valve Upper Arm

2.76



#679 - Valve Lower Arm

2.76



#336 - Low Pressure Miraco Valve
fits all Big Spring Troughs

25.43


Replacement Parts for Blue Miraco Valves

#514 - Miraco Valve Base Screw

0.39



#508 - Miraco Valve Bottom Base

3.57



#507 - Miraco Valve Cap

2.41



#521 - High Pressure Miraco Valve

17.76




#511 - Miraco Valve Lock Pin

1.34



#516 - Miraco Valve Lower Arm

2.87



#509 - Miraco Valve LP Orifice

1.95




#513 - Miraco Valve Plunger with Seat

2.87



#512 - Miraco Valve Plunger Seat

0.39



#510 - Miraco Valve Top Base

3.57



#515 - Miraco Valve Upper Arm

2.87




#672 - Custom Barb Fitting Elbow

6.11



#400 - 3/4" Stainless Steel Clamp

2.22



#396 - 3/4" Male & Barb Fitting

3.06



#156 - 2' Flex Hose with Fittings

17.25




#424 - 3.25" Stem

5.10



#151 - 7.5" Stem

4.80



#260 - 10" Stem

7.20



#586 - 5.5" Float Arm

5.33




#954 - Plastic Tube

0.47



#345 - 4" x 4" Bob Float

10.80



#343 - Brass Thumb Screw

1.53



#342 - Miraco Nylon Ratchet

2.33




#322 - Rubber Drain Plug, without bolt

5.37



#442 - 2" Rubber Drain Plug, with bolt

8.76



#984 - 2.7" Rubber Drain Plug, without bolt

8.58



#983 - 2.7" Rubber Drain Plug, with bolt

11.96




#322 - Rubber Drain Plug, without bolt

5.37



#951 - 3/8" x 1/4" valve

14.33



MIR01-150 - 4" Rubber Plug

12.98




#935-5 - Valve Compartment Cover Clip

7.98



#167 - Valve Assembly Strap

6.53


Heaters

#919-5 - 5' Heat Cable with Plug

29.00



#919-5-220 - 5' 220 Volt Heat Cable with Plug

32.00




#543 - 250 Watt 110 Volt Heater

87.00



#160 - 250 Watt 110 Volt Heater Kit

116.00



#543-220 - 250 Watt 220 Volt Heater

87.00



#543-5 - 500 Watt 110 Volt Heater

92.00




#162 - 500 Watt 110 Volt Heater Kit

121.00



#543-5-220 - 500 Watt 220 Volt Heater

93.00



#163 - 500 Watt 220 Volt Heater Kit

125.00


Complete Parts Bag

#175-2700 - Complete Parts Bag for 2700 Trough

116.64



#175-5-2800 - Complete Parts Bag for 2800 Trough

120.35



#175-2900 - Complete Parts Bag for 2900 Trough

116.64



#208-3000 - Complete Parts Bag for 3000 Trough

157.28




#265-3100 - Complete Parts Bag for 3100 Trough

116.99



#105-3200 - Complete Parts Bag for 3200 Trough

156.00



#470-3500 - Complete Parts Bag for 3500 Trough

138.23



#937-6000 - Complete Parts Bag for 6000 Trough

272.55




#243-6100 - Complete parts bag for 6100 trough

213.90



#165-6200 - Complete parts bag for 6200 trough

135.23



#165-6300 - Complete Parts Bag for 5300 Trough

135.23



#165-6400 - Complete Parts Bag for 6400 Trough

135.23




#165-6500 - Complete Parts Bag for 6500 Trough

135.23


Valve Compartment Covers (some covers fit multiple troughs)

##287 - 2700 Compartment Cover

49.73



##176-2800 - 2800 Valve Compartment Cover

35.25



#176-2900 - 2900 Valve Comparment Cover

35.25



#214-3000 - 3000 Valve Compartment Cover

39.90




#214-3100 - 3100 Valve Compartment Cover

39.90



#214-3200 - 3200 Valve Compartment Cover

39.90



#448-3500 - 3500 Valve Compartment Cover

66.30



#939-6000 - 6000 Valve Compartment Cover

80.76




#939-5-6100 - 6100 Valve Compartment Cover

64.13



#128-6200 - 6200 Valve Compartment Cover

68.33



#128-6300 - 6300 Valve Compartment Cover

68.33



#128-6400 - 6400 Valve Compartment Cover

68.33




#128-6500 - 6500 Valve Compartment Cover

68.33


Access Doors

#130 - Large Access Door

20.93



#269 - Lil Spring Access Door
fits: 2900, 3100, 3200, 2700 & 2800

27.45



#986 - 6" x 11" Access Door
fits: 6000 trough

19.20



#112 - Small Access Door
fits: 3000, 6200, 6300, 6400 & 6500

29.48




#469 - Access Door
fits: Miraco 3500

26.40



#130 - 6" x 17" Access Door
fits: 6000 trough

20.93


Valve Compartment Gaskets

#369 - Valve Compartment Gasket
45" fits: 2700, 2800 & 2900 Troughs

4.20



#210 - Valve Compartment Gasket
52" fits: 3000, 3100 & 3200 Troughs

5.03



#439 - Valve Compartment Gasket
56" fits: 3500 Trough

4.50



#129 - Valve Compartment Gasket
70" fits: 6300, 6400 & 6500 Troughs

5.18




#129 - Valve Compartment Gasket
72" fits: 6200 Trough

5.18



#956 - Valve Compartment Gasket
80" fits: 6100 Trough

8.10



#956 - Valve Compartment Gasket
86" fits: 6000 Trough

8.10



#A834 - 14" x 30" Heat Tube

67.00
