Ultra-Lift 2 Bale Bedding Trailer

Features
  • Heavy-duty parallel lift, raises table up to 30 inches for bedding over wire panels
  • Bi-directional, sliding conveyor allows operator to straw from left or right hand side of machine
  • Self-contained hydraulic system, uses no tractor hydraulics
  • Heavy-duty tube frame and tongue
  • Industrial R4 tires
  • Durable powder coat finish
  • Holds 2 bales
  • 1 year limited warranty

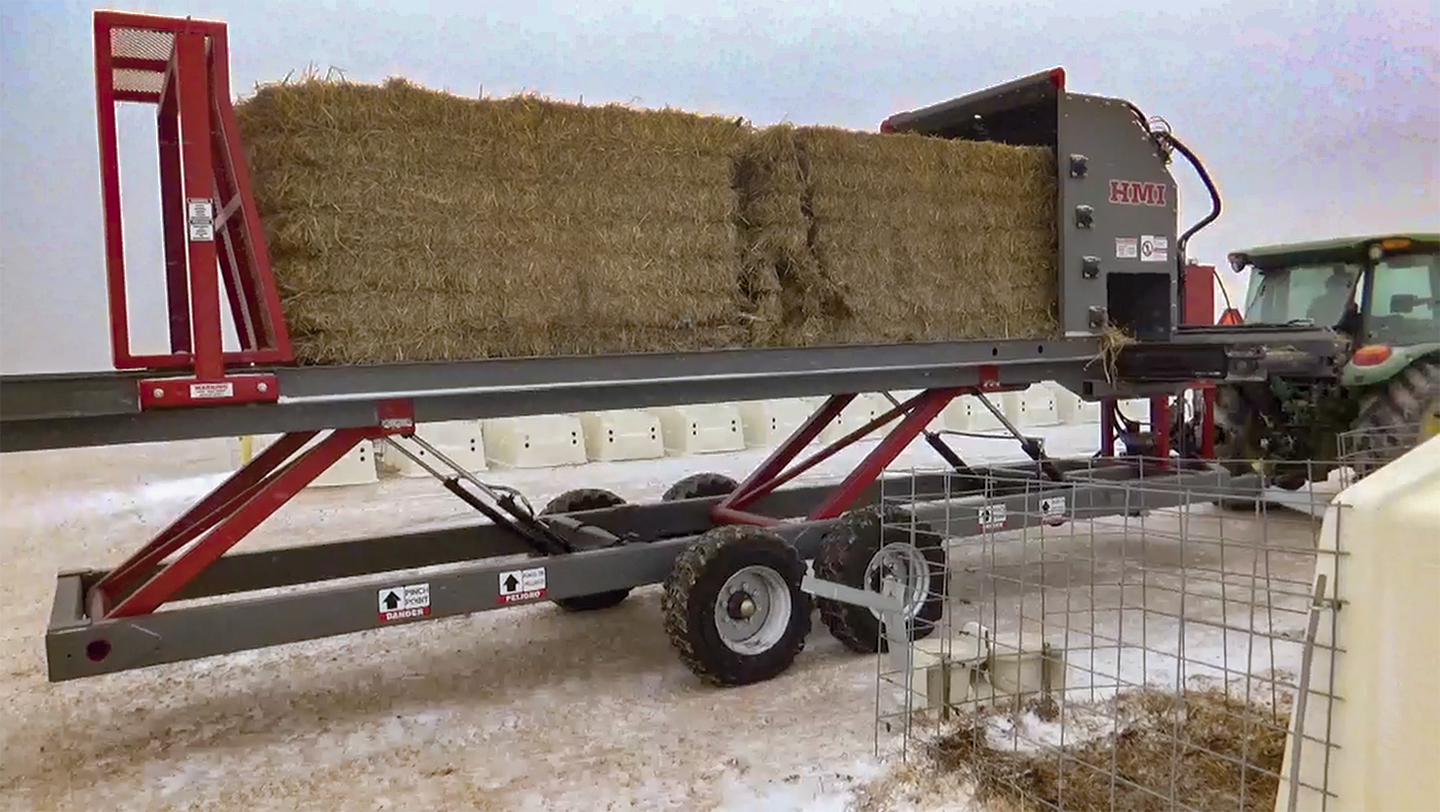

Machine raises up to shoot bedding over wire panels


Touch screen controller


Available with or without the rear bale discharge


Bed from the back of the hutch with our new Belt Deflector Option.
Can be added to existing trailers.


With and without the new Belt Deflector Option

  • Heavy duty tube frame and tongue
  • Adjustable Clevis hitch
  • Tandem, galvanized, 8000lb torsion axles
  • Industrial R4 tires
  • Heavy duty jack
  • Solid smooth floor
  • Durable powder coat finish
  • All beater bearings outside of housing for easy access
  • Taper lock hubs on all sprockets
  • 667 XH extra heavy floor chains
  • Replaceable VHMW bearings on push rack
  • Self contained hydraulic system, uses no tractor hydraulics
  • Requires 540 RPM P.T.O. not 1000 RPM
  • All off the shelf bearings, sprockets and chains
  • All Eaton Hydraulic Motors
  • Easily serviced sickle knives on front beaters
  • Bi-directional conveyor, straw out left or right
  • Sliding conveyor for left or right discharge
  • High speed conveyor for additional reach
  • UHMW bearings on conveyor slide (no metal to metal)
  • Heavy duty parallel lift to raise tabel
  • 30" lift on table
  • Belt conveyor produces much less dust than blower
  • No belts to maintain

Replacement Hyd Filter for UltraLift 18.5" long #ULZ5ELEMENT

120.00



8' Replacement Belt for UltraLift with Outside Tracking Ribs

1054.90
